HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer

Name: HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer
Brand: FASTPCBA
Price: 1 USD

Quality HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer wholesale

Brand Name : FASTPCBA

Model Number : OEM PCB/PCBA Manufacturing

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : Final price depends on actual order

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 1-30 work days

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Layer Count : 1-48

MOQ : 1 pcs

Min line : 0.003"

Max size of finish board : 700*460mm

Sub-assembly : Plastic,metal,screen

Copper weight : 0.5-3 0z

Package : QFN,BGA,SSOP,PLCC,LGA

PCB outline : Square,circle,irregular(with jigs)

Contact Now

Smt Pcba Service Shenzhen Quick Turn One Stop Oem Pcb Assembly

Our Service Type

FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.

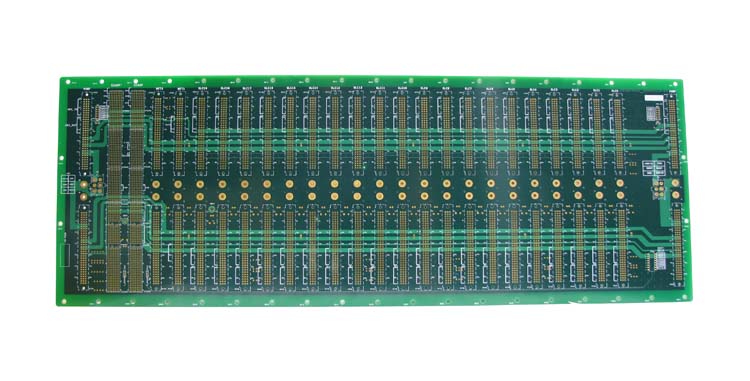

Bare PCB Manufacturing

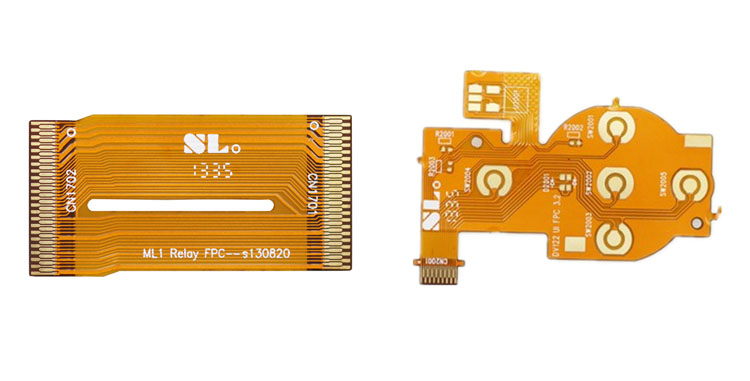

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......

HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer

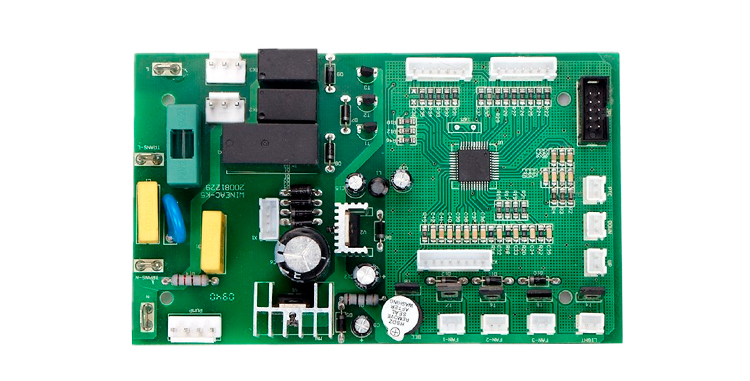

PCB Assembly Service

HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer

PCB / PCBA Production Capacity

Article	Description	Capability
Sercive	PCB and SMT assembly with one-stop service
Material	Laminate materials	FR4, High TG FR4, High Frequency, Alum, FPC
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
Board Thickness	Min.	Single/Double:0.008±0.004”
		4layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper weight	Outer Cu weight	0.5-4 0z
Copper weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002”(0.05mm)
	PTH hole tolerance	±0.002”(0.005mm)
	NPTH hole tolerance	±0.002”(0.005mm)
Solder mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003”(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)
E-test	Function Test	100% Functional test
E-test	PCBA Testing	X-ray,AOI Test,Functional test
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline	Square,circle,irregular(with jigs)
Sub-assembly	Plastic,metal,screen
Min line/space	0.075/0.075mm
Max size of finish board	700*460mm
MOQ	1pcs
Component sourcing	Yes

FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.

HASL Surface Mount Fr4 6OZ Quick Turn Pcb Assembly 48 Layer
