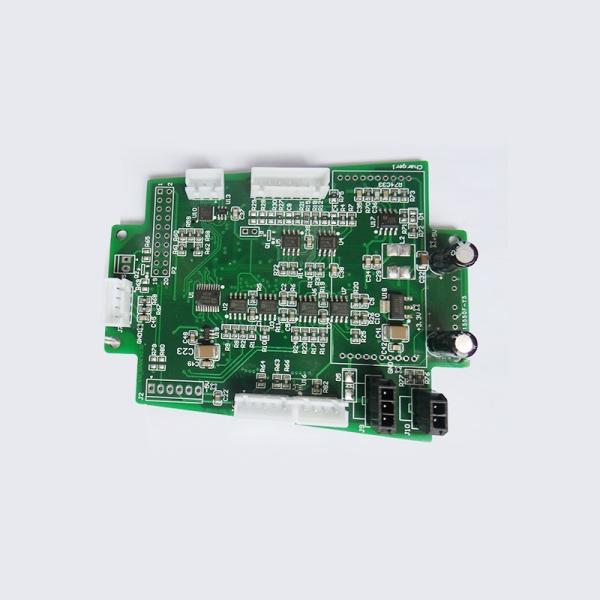

Industrial Pcba Electronics Manufacturing Microwave Sensor Surface Mount Pcb Assembly
Technical Specification:
| Name | OEM China Medical Equipment PCB and PCBA Manufacturer |
| Layers | 1-48 |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Finished Board Thickness | 0.2-7mm |
| Copper thickness | 0.5-6Oz |
| Solder Mask | Gree/yellow/black/Red |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Impedance Tolerance | ±5% |
| Copper Weight Tolerance | ± 0.25 oz |
| Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
About FASTPCBA:
FASTPCBA is the leading pcb manufacturing and pcb assembly factory globally, with ISO14000, 13485, ISO9001 and IATF16949 certificates simultaneously, can provide better pcba service for customers from Iot pcba, aerospace pcba, military pcba, communication pcba, industrial pcba, medical pcba, automotive pcba etc.
FASTPCBA keeps pace with the times, has imported advanced YAMAHA, MADATA, selective wave soldering, 3D AOI, X-RAY etc equiments, we can provide accurate pcb printing, precise pcb assembly, custom pcb manufacturing, original package componets agent service, save your cost and time at the same time.
FASTPCBA survival over 20 years, as our goal is always provide best quality pcba solution for customers from domestic and abroad like Japan, Brazil, America, Russia, Gemany, France, UK etc. FASTPCBA can turn your pcb design to pcba or pcb assp, welcome to inquiry and visit us in shenzhen china.
