LED Industry Smart Printed Circuit Prototype PCBA Electronics

  • 1
  • 2
  • 3

Brand Name : FASTPCBA

Model Number : One-Stop PCBA Manufacturers

Certification : IATF16949, ISO13485, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150000 Pieces per Month

Delivery Time : 5

Packaging Details : PCB: Vacuum Packing/ PCBA: ESD Packing

Number of layers : 1-48

Material : FR4, High TG FR4, High Frequency, Alum, FPC

Min space : 0.075mm

Sub-assembly : Plastic,metal,screen

Max size of finish board : 700*460mm

Package : QFN,BGA,SSOP,PLCC,LGA

Contact Now

Smart PCBA Electronics Oem Service Pcba Prototype Pcb Assembly Manufacturing Printed Circuit

PCB Capability

Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

LED Industry Smart Printed Circuit Prototype PCBA Electronics

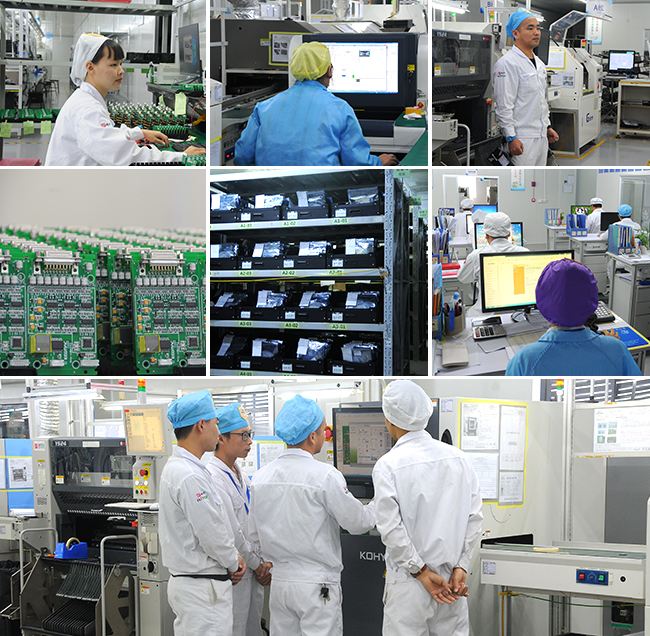

Company Profile


FASTPCBA Co.,Ltd is an expert PCBA manufacturing factory located in China mainland Shenzhen. Its parent company is JINGBANG(INTERNATIONAL)GROUP .With ten years of development,from a small scale printed circuit board enterprises and companies, FASTPCBA turns into a first class manufacturer that could provide HDI, SMT (Surface mounting technology) service as one unit. FASTPCBA exclusively offer OEM service to those domestic and overseas high technology enterprise and enterprises and companies.

FASTPCBA was honored as an excellent supplier annually by many well-known companies both at home and abroad, and was defined as the outstanding private individual high technology enterprise by ShenZhen Scientific Technology Bureau.

FASTPCBA integrates a team of experienced technical consultants and experts in the industry to establish a reliable, lean and convenient manufacturing platform in the fields of automotive electronics, medical electronics, smart home, new energy, and industrial control; and to create a comprehensive PCBA one-stop manufacturing core technology. Solution solution capabilities, to provide customers with advanced patch processing, component generation procurement, assembly testing and supply chain support and other in-depth manufacturing services. Help customers steadily move toward the market, promote the continuous innovation of the electronic technology industry and upgrade the development of manufacturing services.

LED Industry Smart Printed Circuit Prototype PCBA Electronics

Quality Management

No produced defects Quality Principle No defects parts in,No defects flow outFollow TS process
Quality target 98% after oven
100% after QC
Quality rules All staff participation；
Keep improving;
Strive for customer satisfaction

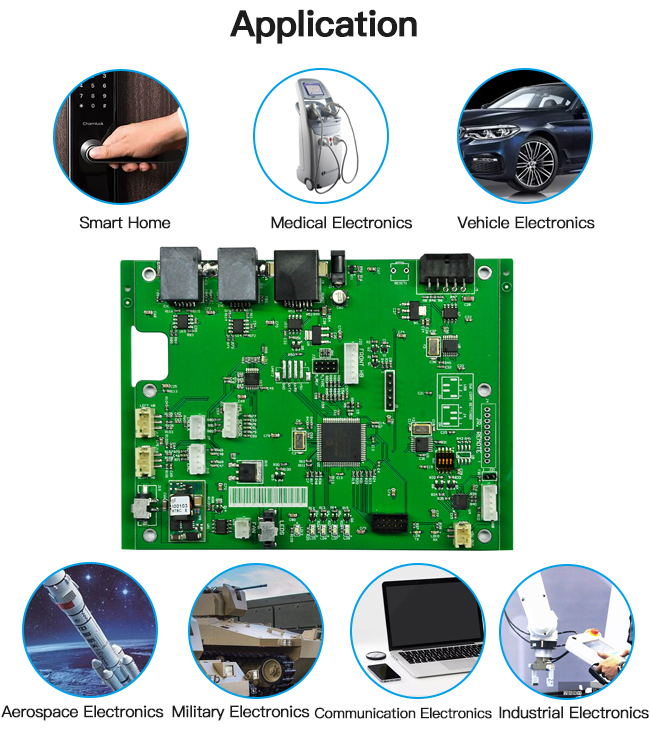

FASTPCBA is a turnkey pcb manufacturing and assembly factory indeed, with our own pcb factory separated from pcba company. PCBA service cover automotive,medical, industry, smart home, aviation, military, communication etc.
